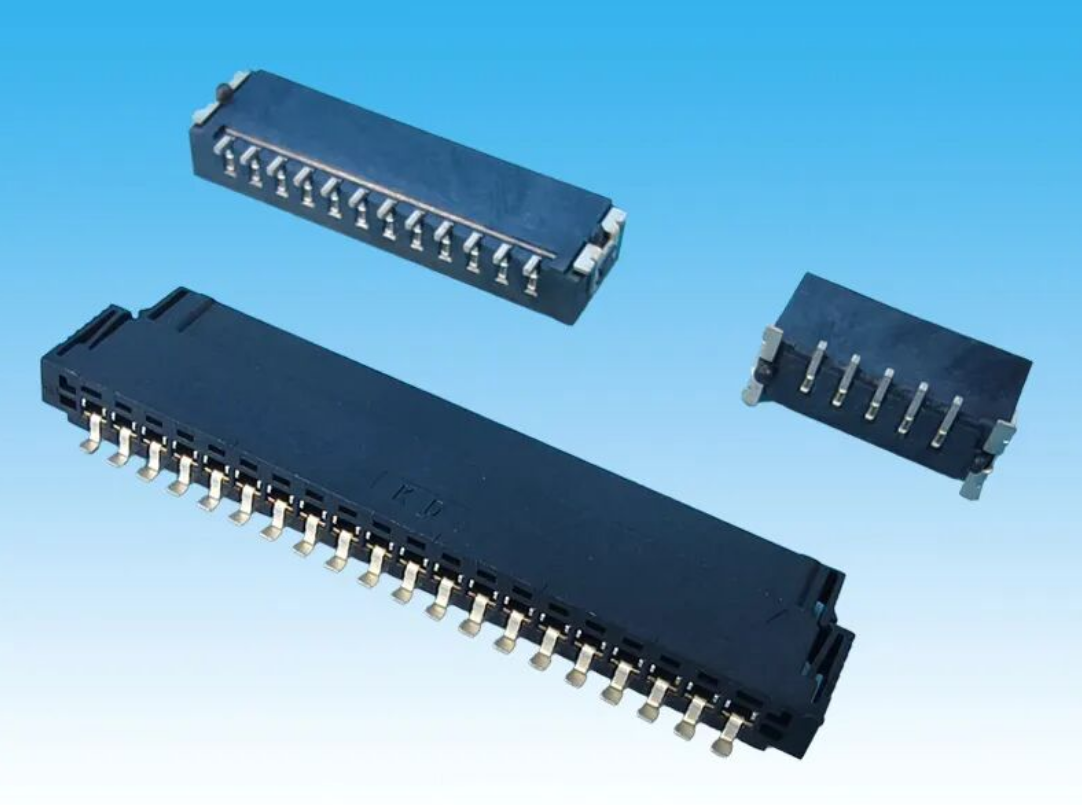

■ Mold Precision Classification
Based on connector accuracy requirements, molds are classified into three levels: standard (tolerance ±0.05 mm), precision (±0.02 mm), and ultra-precision (±0.01 mm). For example, a smartphone connector with dimensions of 10 mm × 5 mm × 2 mm and a tolerance of ±0.01 mm requires ultra-precision mold design, combined with mirror polishing (Ra ≤ 0.1 μm) and a zero-point positioning system.

■ Mold Material Selection
Cavity material directly affects mold life and product accuracy. P20 steel (HRC 30–35) is typically used for standard connectors; S136 (HRC 52–54, corrosion-resistant) for precision connectors; and SKD11 (HRC 60–62, high wear resistance) for ultra-precision connectors. In one of our LCP connector mold projects, SKD11 with nitriding treatment achieved a cavity life of up to 1 million cycles without surface galling.

■ Gate Balancing and Feeding Strategy
Pin-point gates are suitable for small multi-cavity connectors (e.g., 2.5 mm connectors), with a diameter of 0.5–1.0 mm, enabling automatic degating. Submarine gates are often used for aesthetic parts, but stress concentration must be considered. In one case, a submarine gate reduced connector insertion force by 15%, which was resolved by switching to a fan gate. Hot runner systems are ideal for high-volume production (e.g., automotive connectors), eliminating cold slug marks and reducing scrap rates. However, precise temperature control (±1°C) is critical—for LCP materials, the hot runner temperature should be maintained at 340 ± 2°C.

■ Balancing Efficiency and Warpage Control
Cooling time accounts for over 60% of the injection molding cycle. Connector molds should adopt conformal cooling rather than conventional drilled channels. In one micro-connector mold, 3D-printed conformal cooling reduced cooling time from 12 seconds to 6 seconds and decreased warpage from 0.05 mm to 0.02 mm. For thin-wall connectors (wall thickness ≤ 0.5 mm), beryllium copper inserts are recommended, offering thermal conductivity five times higher than steel.

■ The “Invisible Guardian” of Precision Products
Ejection design must prevent deformation. Ejector pin diameter should be ≥ 0.8 mm to avoid pin marks, and ejection balance should be controlled within ≤ 0.02 mm. For deep-cavity connectors (e.g., D-sub connectors), a combined stripper plate and ejector pin system is recommended. In one case, using only ejector pins caused 0.1 mm deformation, which was reduced to ≤ 0.03 mm after adopting a stripper plate.

■ Precision Manufacturing Process Chain
Mold manufacturing should follow a complete process: rough machining → finishing → heat treatment → surface treatment. High-speed milling (20,000 rpm) is used for roughing, while wire EDM achieves finishing accuracy of ±0.005 mm. Cavity polishing is performed with diamond sandpaper (from grit 800 to 12,000). In one ultra-precision mold, cavity dimensions of 10 mm ± 0.005 mm achieved a 100% pass rate using CMM inspection.

■ Trial Molding Parameter Optimization
Trial molding must validate the full process: filling, packing, cooling, and ejection. Filling time should be optimized באמצעות CAE simulation (e.g., Moldflow) to ensure uniform melt front velocity (variation ≤ 10%). Packing pressure should be determined using the weight control method, with pressure gradients (e.g., 60%–40%–20%) aligned with material shrinkage. In one case, excessive packing pressure caused flash (0.05 mm), which was resolved by reducing pressure and extending packing time.

■ Quantitative Mold Acceptance Criteria
Mold acceptance should meet the following criteria:
① Dimensional accuracy (cavity tolerance ±0.005 mm)
② Surface quality (Ra ≤ 0.2 μm, no scratches or gas marks)
③ Mold life (500,000 cycles for standard molds; 1,000,000 cycles for precision molds)
④ Production efficiency (cycle time ≤ 60 seconds)
